JH-Push85 Double Chuck Five Axis Groove Pipe Cutting Machine

Introducing the JH-PUSH85 DOUBLE CHUCK FIVE AXIS GROOVE PIPE CUTTING MACHINE, a cutting-edge solution designed to revolutionize your pipe-cutting operations. With its advanced features and unparalleled precision, this machine offers a seamless blend of efficiency, accuracy, and stability.

Performance:
Equipment Attributes:
- Through Hole Size (mm):88mm
- Dimensions (Length * Width * Height) (mm):9850*1900*2200
- Operating Temperature (℃):0--40

Processing Range:
- Y-axis single feed length (mm): 1500
- Y-axis continuous feed overall length (mm): Single 1500 (endless loop)
- Range of Machining Diameter for Rotating Axis (mm):6mm--86mm
- Cutting Gap Width (mm):0.08-0.2

Stroke Range:
- X-axis Stroke (mm)：150
- Y-axis Stroke (mm)：1500
- A-axis Stroke (∠)：±45°
- Z-axis Stroke (mm)：200

Repetitive Positioning Accuracy/Speed:
- Repetitive Positioning Accuracy of X/Y-axis (mm):0.02
- Cutting head A-axis rotation precision (arc minutes): ≤5
- Repetitive Positioning Accuracy of B-axis (arc minute): ≤5
- Maximum Rotational Speed of B-axis (RPM):800

Speed and acceleration:
- Maximum Acceleration of X/Y-axis:1.5G
- Maximum Idle Speed of X-axis (m/min):30
- Maximum Idle Speed of Y-axis (m/min):30

Loading Parameters:
- Loading Length (m):6

 Unloading Parameters:
- Tail Material Length (mm):≤50

Operating Voltage (V):380
Total Weight of the Machine (kg):3150
Equipment Power (kW):13.5

Optional Items:
1. Square Tube Automatic Feeding Rack: Streamline your workflow and boost productivity with the optional square tube automatic feeding rack. It simplifies material handling, allowing you to focus on what matters high—quality production. Enhance efficiency and prioritize quality production with the square tube automatic feeding rack, optimizing material handling for seamless workflow integration.
2. Optional Blanking Conveyor Belt: Opt for the optional blanking conveyor belt for convenient material handling and disposal, further optimizing your production process.
3. Six-Wheel Drive Feeding Table Widening Rack: Take on challenging pipe-cutting tasks confidently, thanks to the six-wheel drive feeding table widening rack. It ensures stability and precision, even when working with thick-walled pipes or those with oil walls.

Standard Collocation:
1. Cutting Control System: The JH-PUSH85 comes standard with the Bochu FSCUT3000DE-H cutting control system, renowned for its reliability and precision. Experience seamless control and optimization of the cutting process for results.
2. Nesting Software: Included with the machine is the TubesT 3D nesting software, designed to streamline the programming and nesting process, material utilization, and minimizing production time.

Key Features and Advantages:
1. Simple and Intuitive Operation:
The JH-PUSH85 is designed for ease of use, making it accessible for operators of all skill levels. Its user-friendly interface ensures quick learning and seamless integration into your workflow. Operators of all skill levels find the JH-PUSH85 accessible.

2. High Efficiency and Precision:
Experience unparalleled productivity with the JH-PUSH85. Equipped with cutting-edge technology, it delivers high-speed and precise cutting, minimizing material waste and throughput. Maximize throughput and minimize material waste with the JH-PUSH85.

3. Exceptional Stability:

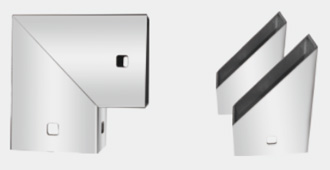

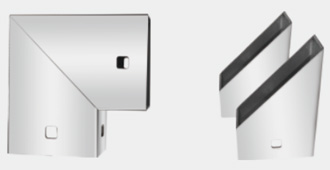

 Built to withstand rigorous industrial environments, the JH-PUSH85 offers exceptional stability during operation, ensuring consistent and reliable performance over time.4. Versatile Cutting Capabilities: With its 45° rotating cutting head and seamless groove splicing, this machine offers versatility in cutting various types of pipes. Whether you're working with standard pipes or specialized materials, the JH-PUSH85 delivers exceptional results.

Applications:
The JH-PUSH85 DOUBLE CHUCK FIVE AXIS GROOVE PIPE CUTTING MACHINE is ideal for a wide range of applications across various industries, including:
- Construction: Precision cutting of pipes for structural frameworks and plumbing systems.
- Manufacturing: Efficient production of pipe components for machinery and equipment.
- Automotive: High-precision cutting of pipes for exhaust systems and chassis components.
- Aerospace: Accurate machining of pipes for aircraft structures and hydraulic systems.
- Energy: Versatile cutting solutions for pipelines and renewable energy infrastructure.

Experience the next generation of pipe-cutting technology with the JH-PUSH85. Unlock new levels of efficiency, precision, and versatility in your operations.
